Tech Specs at a Glance:
Magnification: 10xObjective Size: 54mmTotal Weight: 1115g / 39.33oz Dimensions (H / W): 195mm / 136mmField of view: 110m @ 1000m Exit Pupil: 5.8mmEye Relief: 14mm

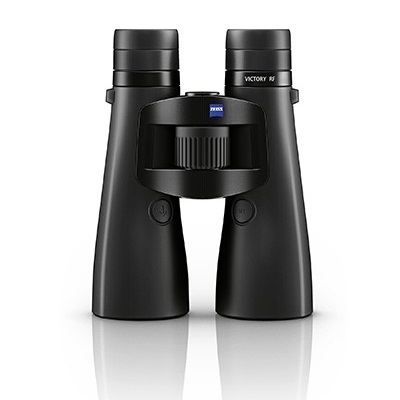

Zeiss Victory Laser Rangefinder - 10x54 RF :

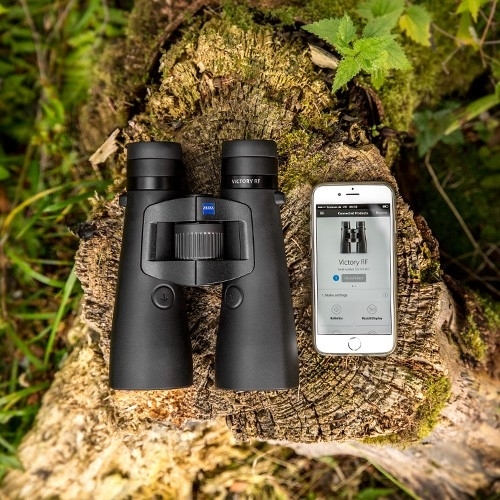

The Victory Rangefinder System is a laser rangefinder with an integrated real-time ballistics computer. The consideration of all relevant factors and customisation with the aid of the ZEISS Hunting App ensure precisely placed shots at any distance.The rangefinder determines the precise target distance up to a maximum range of 2,300 metres. The capabilities of the rangefinder system are perfected by the ability to synchronise it with the ZEISS Hunting App via Bluetooth. Every measurement takes the physical and environmental factors, such as temperature and air pressure, into account when making the calculation. Storage capability for up to nine personalised ballistic profiles, that can be set up within the ZEISS Hunting App. Thanks to the Bluetooth function it is possible to import personal ballistic data from the ZEISS Hunting App to the Victory RF. The various measuring functions of the rangefinder take a multitude of relevant data into account and use them to calculate the precise setting for the BDC (ASV)
Optical System:
SPECIFICATIONS
Magnification
10x
Effective Lens Diameter
54 mm
Exit Pupil Diameter
5.8 mm
Twilight Factors
23.2
Field of View at 1000m
110 m
Close Focus
3.5 m
Diopter Adjustment Range
+|- 3 dpt
Pupil Distance
58.5 - 76 mm
Eye Relief
14 mm
Lens Type
FL
PrismSystem
Abbe-Konig
Water Resistance
400 mbar
LotuTec
Yes
Nitrogen Filling
Measuring Range in m
15 m - 2300 m
Laser Class
Class 1
Laser Wave Length
905 nm
Measuring Accuracy in m
1 m to 600m
Measuring Accuracy in %
0.5 % over 600
Measuring Accuracy at
600 m
Measuring Time
0.3 sec
Beam Divergence
1.6 x 0.5 mrad
Battery
1 x 3 V Type CR 2
Battery Life at 20C
> 2500
Height
195 mm
Width
136 mm
Weight
1115 g
