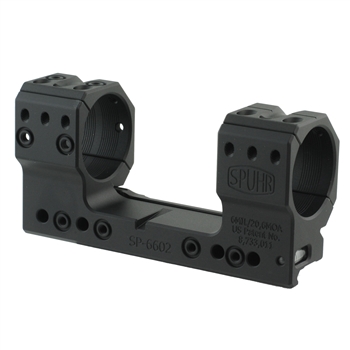

SPUHR - Picatinny Mount Integrated ACI - 36mm Tube - 1.5" Height - 20.6 MOA / 6 MIL - SP-6602
SPUHR - Picatinny Mount Integrated ACI - 36mm Tube - 1.5" Height - 20.6 MOA / 6 MIL - SP-6602

Price: $632.90

Quantity Available:1


Ring Height:

Description

SPUHR - Picatinny Mount Integrated ACI - 36mm Tube - 1.5" Height - 20.6 MOA / 6 MIL - SP-6602:

The ideal scope mount system series of mounts feature seven set of interfaces to attach any of more than 40 different accessories, and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle.

The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance. The screws come pre-waxed from the factory to ensure proper torque values.

The SP-6602 is designed for use with 56 mm objectives on rifles with MIL-STD-1913 or STANAG 4694 rails, and is especially suitable for extended Picatinny rails combined with night vision equipment. The SP-6602 will fit most 36 mm scope tubes.
Technical Features:
  • Tube Diameter: 36mm
  • Tube Height: 38mm / 1.5"
  • Material: Billet 7075-T651 Aluminum
  • Finish: Hardcoat Anodized
  • Length: 5.04"
  • Clearance: 6.0mm / 0.236" (from bottom of the tube to bridge of mount body)
  • Interfaces: 7 Sets
  • Colour: Black
  • Weight: 9.6 oz.
  • 20.6 MOA / 6 MIL
  • 10 degree wedge included
