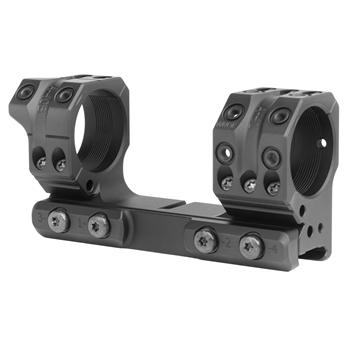

SPUHR - GEN 3 Picatinny Mount Integrated Bubble Level - 34mm Tube - 1.5" Height - 0 MOA / 0 MIL - SP-4002C
SPUHR - GEN 3 Picatinny Mount Integrated Bubble Level - 34mm Tube - 1.5" Height - 0 MOA / 0 MIL - SP-4002C

Alternative Views
Price: $632.90

Quantity Available:(Out of Stock)


Ring Height:

Description

SPUHR - GEN 3 Picatinny Mount Integrated Bubble Level - 34mm Tube - 1.5" Height - 0 MOA / 0 MIL - SP-4002C:

The ideal scope mount system series of mounts feature seven set of interfaces to attach any of more than 40 different accessories, and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle.

The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance. The screws come pre-waxed from the factory to ensure proper torque values.

The SP-4002C is designed for use on rifles with MIL-STD-1913 or STANAG 4694 rails, and is especially suitable for bolt action rifles with 1-piece Picatinny rails. The SP-4002C will fit most 34 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK and the Nightforce BEAST.

Technical Features:
  • Tube Diameter: 34mm
  • Tube Height: 38mm / 1.5"
  • Material: Billet 7075-T651 Aluminum
  • Finish: Hardcoat Anodized
  • Length: 4.76"
  • Interfaces: 7 Sets
  • Colour: Black
  • Weight: 8.0 oz.
  • 0 MOA / 0 MIL
  • 10 degree wedge included
