NightForce NX8 1-8x24 - 30mm - F1 - 0.2 MRAD PTL FC-DMx - Capped Turret - C654
Alternative Views
Tech Specs at a Glance:
Magnification:
1-8
Objective Diameter:
24mm
Field of View:
106 ft. to 13.2 ft.
Eye Relief:
3.7"
Illuminated Reticle:
Yes
Focal Plane:
First
Parallax Adjustment:
Fixed at 137 yards
Tube Diameter:
30mm
Length:
8.7"
Weight:
1.1 lbs.
Price:
$
2,363.00
Quantity Available:
(Out of Stock)
Selected Reticle::
FC-DMx
Description
Additional Details
Technical Info
NightForce NX8 1-8x24 - 30mm - F1 - 0.2 MRAD PTL FC-DMx - Capped Turret - C654:
At only 8.75" in length and 17 ounces, the NX8 1-8X24 F1 is a powerful, compact, and lightweight riflescope. New for 2022, The NX8 1-8X24 F1 is now available with a capped elevation turret to ensure the elevation adjustment is not accidentally moved during transit or rough handling.

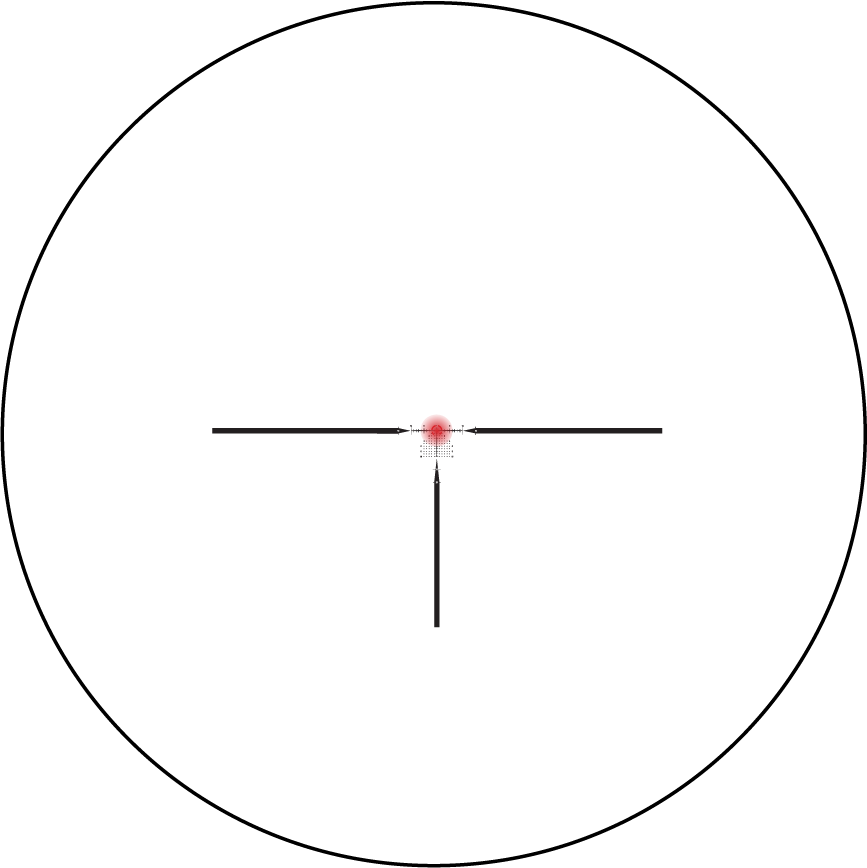

The NX8 1-8x24 F1 with capped elevation adjustment also includes our new FC-DMx reticle, previously only available in the ATACR 1-8x24 F1. The decreased center dot size (.2MRAD/.7MOA) allows for a more precise aiming point when at high magnification and the large (4 MRAD) segmented circle allows for a clear view of the target. Nightforce has maintained the daylight bright illumination that allows for use in any conditions at 1x or high magnification.
Features & Design:
First focal plane reticle placement
Power throw lever allows instant magnification
Fully Multicoated ED glass
30 mm tube
New, more highly visible magnification markings
Hi-speed threads for faster diopter adjustment
Capped windage adjustment, to avoid accidental adjustments
Capped elevation adjustment, to avoid accidental adjustments
Nightforce intelligent reticle
Focal Plane
First
Magnification Range
1-8x
Objective lens diameter
24 mm
Tube diameter
30 mm
Internal adjustment range (MOA/Mil)
Capped e: 30 MRAD w: 30 MRAD
Click value
0.2 MIL
Calibrated Ranging Power
N/A
Parallax adjustment
Fixed at 125m
Exit pupil diameter
1x: 7.9 mm; 8x: 3.0 mm
Eye relief
95.3 mm / 3.75 in
Field of view @100 yards
1x: 106.0 ft. - 8x: 13.2 ft.
Objective outer diameter
1.18"
Eyepiece outer diameter
1.57"
Overall length (inches)
8.7"
Weight
1.1 lbs.
Mounting length (inches)
5.7"
Front/Rear Mounting Length
Fr 1.7 in / Rr 2.3 in
PTL (Power Throw Lever)
Standard
Reticles available
FC-MOA, FC-Mil
Illumination
Daylight visible, adjustable
Elevation Feature
Capped, finger-adjustable
